Description

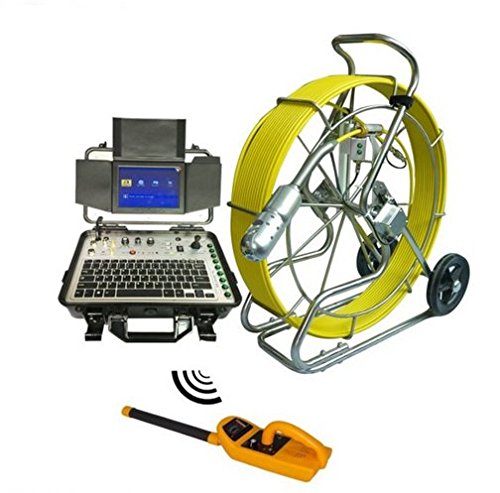

Main features for pan tilt inspection camera robot
ø50mm Pan & Tilt camera head, rotation endless (slip ring)
700TV lines ,waterproof up to 10bars
HD DVR Control unit with 240G SSD ultra-high capacity storage
ø9mm x 80m fiberglass cable with meter counter
8 inch LCD screen with sunshade included
Joystick operation for camera rotate
8800mA li-ion battery,support unit working more than 5 hours
External USB disk port ,easily to transfer the file to compute
Sewer inspection camera robot specifications

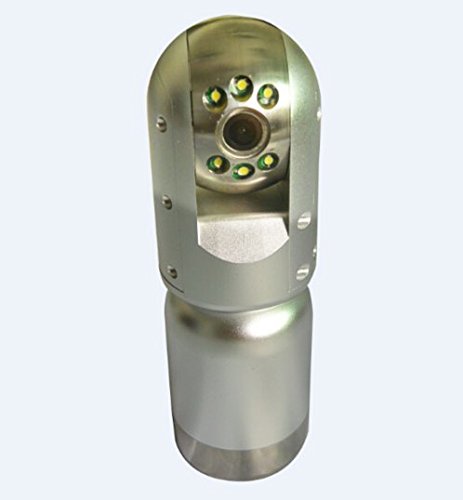

Sewer inspection camera Robot/ Camera head
Camera size Ø50mm x 154mm, sensor 1/4″ Color 700TVL
Waterproof IP68 up to 10 bar,Built in 512hz transmitter
View range 120°
Rotation: Pan 360°, Tilt 180°
lens position automatic reset
Slip coupling for rotation axle
6pcs high light LED lighting adjustable
Detachable with pins type connection to Cable Reel
Lens window sapphire glass

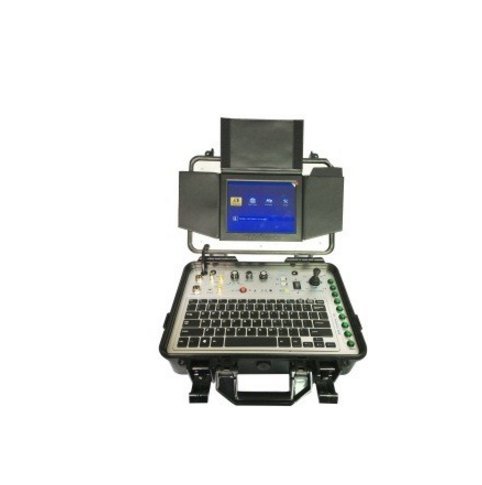

Sewer inspection camera Robot/ HD DVR control unit
8″ LCD Screen
PT camera Joystick
HD DVR SYSTEM with 240G Solid State Drive(SSD)
Recording Pause funceion
Keyboard real time typewriting
USB Port connecting to PC
Video input jack 3 options
Microphone Audio recording button
A/V output jack
8800mA rechargeable Li-ion Battery Pack
Battery level indicator

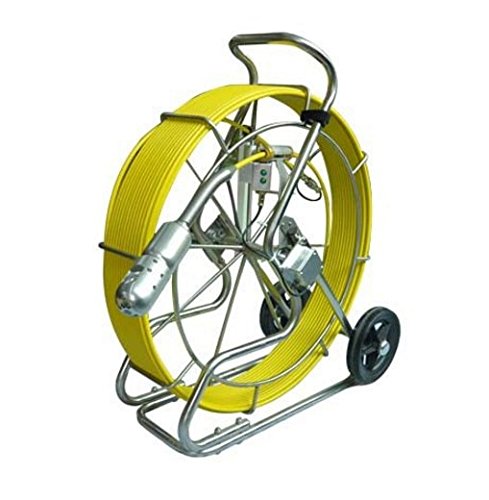

Sewer inspection camera Robot/ 120m cable reel
Fiberglass push rod cable with meter counter
Cable diameter ø9mm
Cable length 80m
Reel size 70 x 28 x 84cm

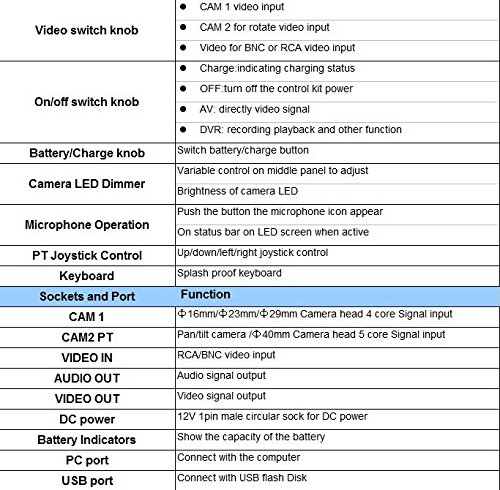

Sewer inspection camera Robot/ HD DVR control unit panel button
Product 2:

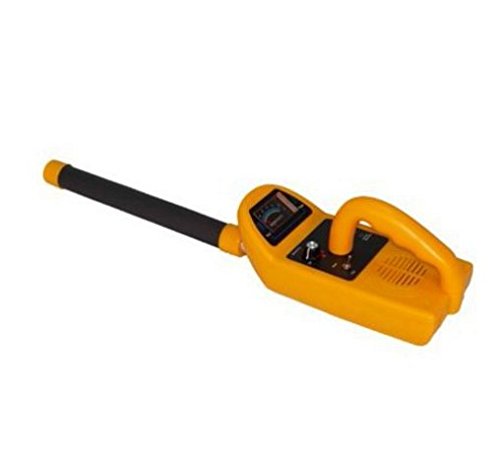

Wall Sewer Drain Pipe Locator, 512Hz Receiver,512Hz Transmitter Receiver Pipe Inspection Camera Accessories
Product 3: Stainless steel skid with wheels for Pan tilt camera
Min Dia.:200mm Max Dia.:500mm
ø50mm Pan & Tilt camera head, rotation endless (slip ring).700TV lines ,waterproof up to 10bars.
HD DVR Control unit with 240G SSD ultra-high capacity storage.ø9mm x 80m fiberglass cable with meter counter.
8 inch LCD screen with sunshade included.Joystick operation for camera rotate.
8800mA li-ion battery,support unit working more than 5 hours
External USB disk port ,easily to transfer the file to compute
